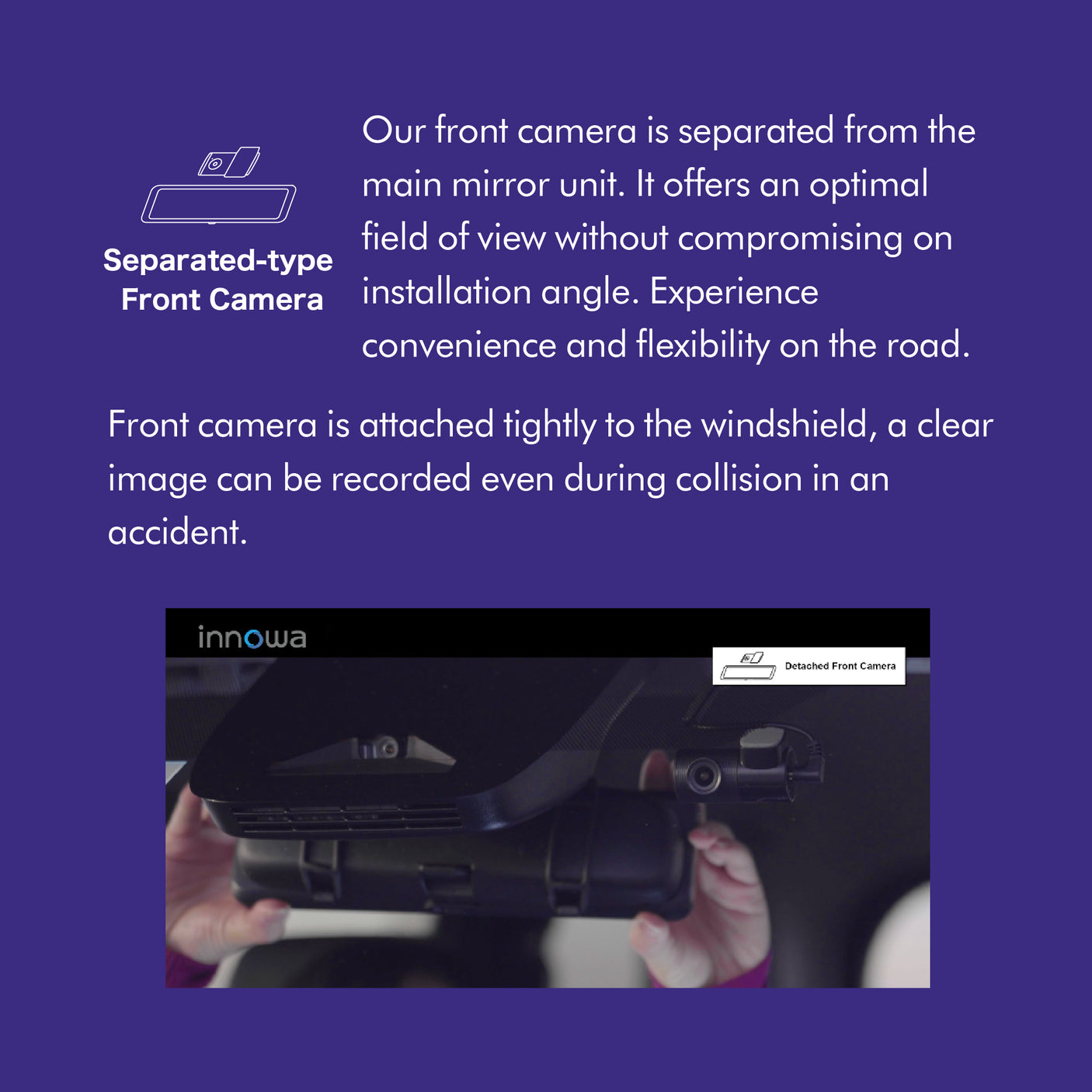

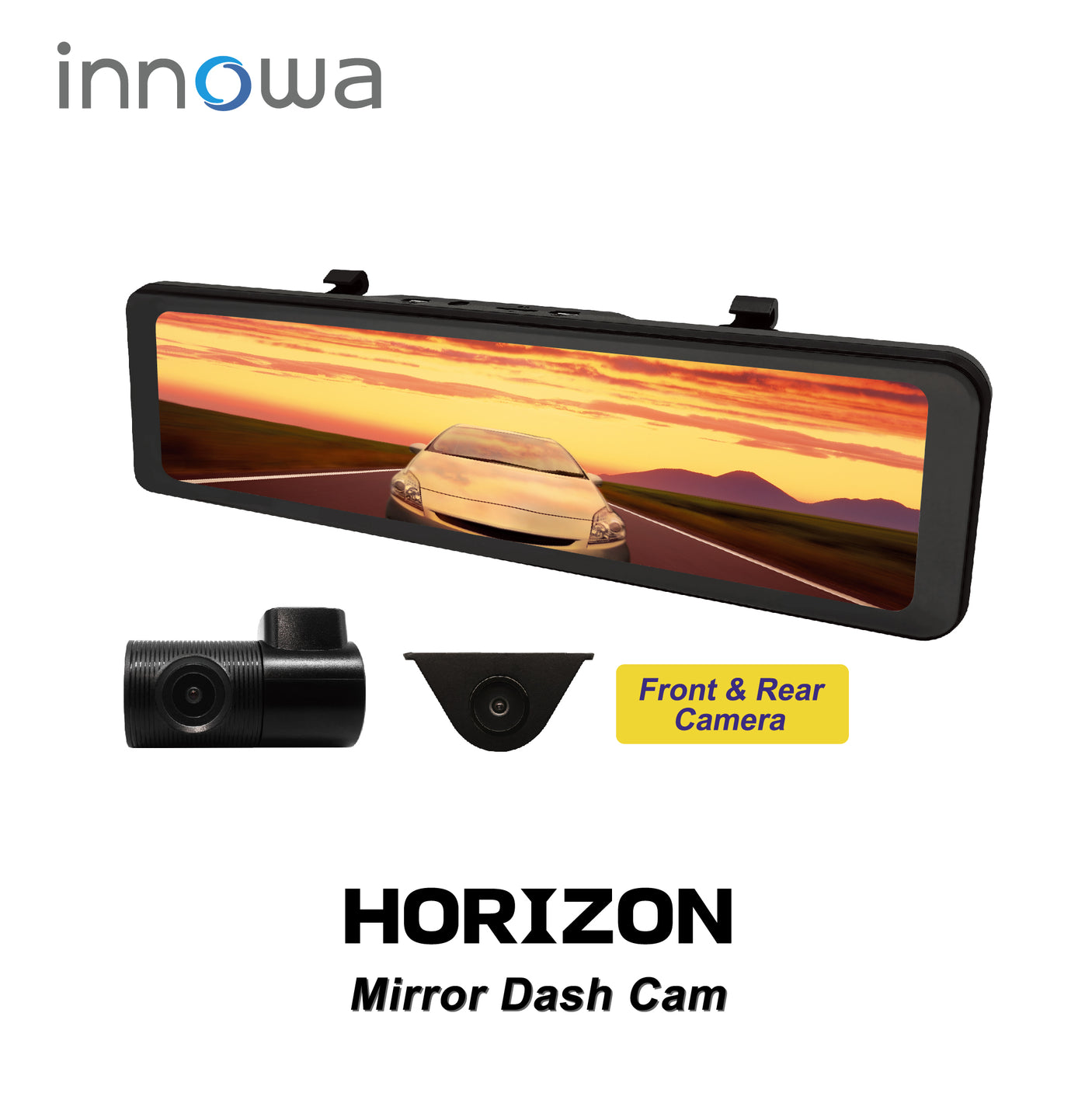

Separated-type Front Camera
Our front camera is separated from the main mirror unit. It offers an optimal field of view without compromising on installation angle. Experience convenience and flexibility on the road.Front camera is attached tightly to the windshield, a clear image can be recorded even during collision in an accident.
Front and Rear camera (2CH)
Full HD 1080p (1920 x 1080p) quality recording is available for front and rear cameras. Experience crystal-clear images like never before.
High Sensitivity SONY STARVIS image sensor (Front and Rear)
Capture videos even in low light conditions with our cutting-edge technology. The innowa HORIZON features the advanced SONY STARVIS CMOS image sensor that maximizes image quality in night time for unparalleled performance.
Front Camera: 140 ° wide angleRear Camera: 150 ° wide angle
Enhance your safety on the road with our wide-angle lenses. The innowa HORIZON boasts a front field of view of 140° and rear field of view of 150°, effectively reducing blind spots for a safer driving experience.
HDR / WDR Image Correction
The innowa HORIZON features a sophisticated HDR/WDR function, ensuring reliable and accurate recording even in areas with sudden brightness changes, such as tunnels, without any white-out or black-out.
Touch Screen
The intuitive touch screen operation makes navigating your innowa HORIZON effortless.
Adjustable Display Range
With just a swipe of your finger, adjust your display position up or down.
Rear Camera Cable: Approx. 10m
Our rear camera cable is 10 meters long, compatible with various car models for flexible installation.
Equipped with GPS
The GPS functionality records your vehicle's position, date, time, and speed information while in motion, providing you with accurate and reliable data.
Radio Interference Prevention
The innowa HORIZON minimizes interference with radio signals, ensuring clear reception for uninterrupted listening pleasure while driving.
Compatible with LED Traffic Lights
Designed to be compatible with LED traffic signals blinking at 50Hz or 60Hz by setting the frame rate appropriately.
Mirror Image (Rear Camera)
With a compact design, the rear camera can be easily installed in various locations, while the positive/mirror image setting allows for versatile usage.
32GB High Endurance microSD Card included
A durable 32GB Class 10 microSD card is bundled for immediate video recording.
SD Card Format Free
Experience a maintenance-free design with our unique file system that minimizes fragmentation and error rates.
PC Viewer
Access and view recorded video files effortlessly with our PC viewer. Displaying a map of the vehicle's path and speed.
Built-in G sensor
The built-in G-sensor detects impacts and instantly records the video to a dedicated folder, providing crucial evidence in the event of an accident.
| Specifications |
|---|
| Model | innowa HORIZON |
|---|---|
| Power-supply voltage | DC12V/24V (5V input) |
| Power consumption | Max 12.5W |
| GPS | ✔️ |
| G sensor | ✔️ |
| Monitor size | 10.88 inch full color IPS monitor |
| Touch panel | ✔️ |
| Viewing angle | Front: Horizontal: Approx. 110° / Vertical: Approx. 55° / Diagonal: Approx. 140° Rear: Horizontal: Approx. 115° / Vertical: Approx. 62° / Diagonal: Approx. 150° |
| Image sensor | Front: 2 million pixels SONY STARVIS image sensor Rear: 2 million pixels SONY STARVIS image sensor |
| F value | Front: F1.8 Rear: F1.8 |
| Operating temperature | -0°C to +60°C |
| Storage temperature | -20°C to +80°C |
| Radio interference prevention | ✔️ |
| Compatible with LED traffic lights | ✔️ |
| Resolution | Front: Full HD 1080p (1920*1080) Rear: Full HD 1080p (1920*1080) |
| Frame rate | Front: 27.5fps Rear: 25fps |
| Recording modes | Normal recording/Event recording (G sensor/manual recording) |
| Photos | ✔️ |
| Voice recording | ✔️ (On/Off) |
| Recording format | Video: MP4 Photo: JPG |
| Image correction | HDR/WDR |
| Recorded video playback method | Main unit, PC (PC viewer, Windows Media Player etc.) |
| Recording media | microSD card 8GB to 64GB compatible (Class 10 or higher recommended) |
| SD card format free | ✔️ |
| Port | mini-USB |
| Super capacitor | ✔️ |
| Mirror image (rear camera) | ✔️ |
| Dimensions | Main unit: W257mmxH71mmxD18mm Front: W56mm×H33mm×D29mm Rear: W56mmxH26mmxD28mm |
| Weight | Main unit: 332g Front: 26g Rear: 84g |
| Cigar charger (length) | about 3.5m |
| Rear camera cable (length) | about 10m |
| microSD card | 32GB (high endurance) |
| Contents | Main unit, elastic band, microSD card (32GB), user manual, quick guide, cigar charger, GPS receiver, front camera, rear camera |
Q&A
Have a Question? We’ve Got the Answer!
PC Viewer Download
OS :Microsoft Windows 7 ,8 ,10 innowa HORIZON DVPlayer
Our PC viewer provides a comprehensive viewing experience, allowing you to view recorded videos along with location information obtained from GPS. Download the software now and take your driving experience to the next level.
